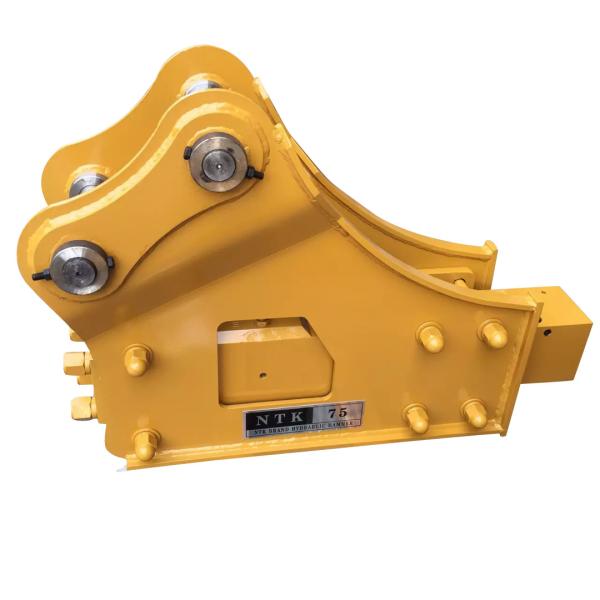

SK60 U60 Kubota Excavator Hydraulic Breaker 9 Ton 75mm Hyundai Rock
Breaker
Hydraulic Breaker NTK750 Excavator Attachment Parts Demolition
Hammer Chisel 75mm.
Feature
Better design that combines efficiency, reliability and
serviceability.
Excellent power-to-weight ratio
Unique gas-charged piston maximizes hydraulic hammer efficience
Simple, two-moving-parts design for reliability
Quick-change tool system with single round retainer pin
Variety of tool configurations available
Replaceable cylinder sleeves for easy, economical rebuild
Anti-blank fire feature virtually eliminates dry firing for long
hydraulic breaker life
Vibration control that increases operator comfort to increase
efficiency
Standard on all medium and large NTK hydraulic hammers, our
shock-absorbing mounting bracket uses special heavy-duty rubber
mounts to absorb shock, recoil, and impulse vibration. The unique
one-piece design eliminates the need for mechanical springs and
overly heavy mounting brackets. The net result is minimization of
machine wear and improved operator comfort for greater reliability
and productivity.
ALL the Breaker Set include:
Two Standard Chisel, One Tool Box, Two Pieline, One 4L Nitrogen Gas
Bottle.
The detail for NTK750 as blow:
TYPE | UNIT | NTK450 | NTK530 | NTK680 | NTK750 | NTK1000 |
UNIT WEIGHT | KG | 95 | 145 | 275 | 373 | 768 |
Requierd Oil Flow | L/min | 20-40 | 20-50 | 40-70 | 50-90 | 80-110 |
Working Pressure | kg/cm | 90-120 | 90-120 | 110-140 | 120-150 | 150-170 |
Impact Rate | b.p.m | 700-1200 | 600-1100 | 500-900 | 400-800 | 350-700 |
Hose Diameter | in. | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
Chisel Diameter | mm | φ45 | φ53 | φ68 | φ75 | φ100 |
Chisel Length | mm | 500 | 580 | 700 | 750 | 1000 |
Naise 85dB(A)-Distance | m | 3-6 | 4-8 | 5-10 | 6-12 | 7-14 |
Applicable Excavator | m³TON | 0.03-0.1 | 0.06-0.2 | 0.15-0.3 | 0.2-0.35 | 0.4-0.6 |
0.8-1.5 | 2.5-4.5 | 4-7 | 6-7 | 11-16 |
NTK680 Hydraulic Breaker/Hammer Apply to CAT 306 307, PC45 PC50
PC60ZX60 SK60 Kubota U60
NTK provides the construction industry with products utilizing the
latest in design innovation and quality. Our Hydraulic Breakers
have been proven and refined by many years of aggressive service,
backed by our industry leading warranty. FEATURES Available for 0.8
– 55 Ton machines Shock Absorbing Design Noise Reduction Technology
2 Year Factory Warranty Meets ISO 9001 Standards outsea Parts and
Service.
FAQ
What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't
provide warranty time for original and used products.
What is your delivery time?
Generally, we will arrange the goods within 24 hours after your
payment; if not in stock, the delivery time will be communicated in
advance, usually 3-7 days
How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if
you really found something wrong, please provide pictures or video
for us and we will check. After it is confirmed, please return the
goods to us and we will offer the correct item.
How do I pay?
You can pay by T/T, PayPal(for small amount)
