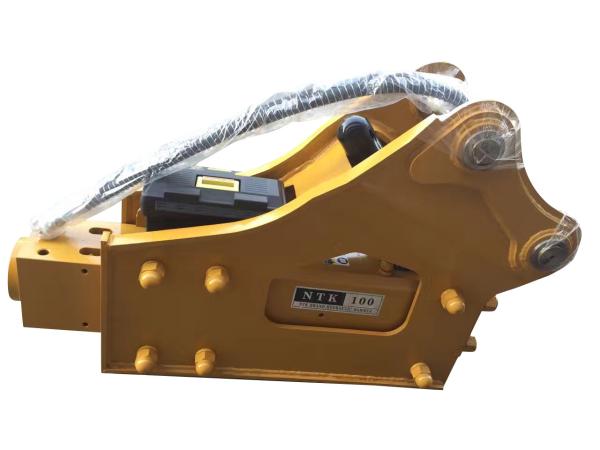

16 Ton 100mm Excavator Hydraulic Breaker Hammer For CAT 312B 312C
312D
Hydraulic Breaker NTK1000 Excavator Attachment Parts Demolition
Hammer Chisel 100mm.
Side Type Breaker
1. Reducing total-length
2. More easier to handle
the breaking objects
3. low maintenance.
Top Type Breaker
1. Easy-operating to achieve excavation work
2. Without side weight, reducing the rate of chisel breakage
3. longer total-length and heavier total-weight.
Silence Box Type Breaker
1. Low noise level
2. Full-closed bracket protects
main body from damage.
Feature
- Better design that combines efficiency, reliability and
serviceability.
- Excellent power-to-weight ratio
- Unique gas-charged piston maximizes hydraulic hammer efficience
- Simple, two-moving-parts design for reliability
- Quick-change tool system with single round retainer pin
- Variety of tool configurations available
- Replaceable cylinder sleeves for easy, economical rebuild
- Anti-blank fire feature virtually eliminates dry firing for long
hydraulic breaker life
- Vibration control that increases operator comfort to increase
efficiency
Standard on all medium and large NTK hydraulic hammers, our
shock-absorbing mounting bracket uses special heavy-duty rubber
mounts to absorb shock, recoil, and impulse vibration. The unique
one-piece design eliminates the need for mechanical springs and
overly heavy mounting brackets. The net result is minimization of
machine wear and improved operator comfort for greater reliability
and productivity. - Simplified lubrication for greater reliability
- A grease port is provided for automatic and/or manual greasing of
the demolition tool. This prevents damage or premature wear caused
by a lack of grease.
- Full serviceability of the industry's easiest, lowest cost,
body-rebuild system
Hydraulic breakers are not meant to have an easy life. They
occasionally need to be rebuilt. When the hammer body is involved,
NTK's replaceable sleeve design can reduce your costs by a factor
of five to ten! - Potential applications include:
Rock breaking
Slag breaking
Reducing oversize material
Concrete breaking and recycling
Road construction
Sidewalk and curb construction
Commercial / selective demolition
C&D recycling / sorting
Underwater applications
Site excavation
Scaling and tunnel excavation
Trenching
And many more!
ALL the Breaker Set include:
Two Standard Chisel, One Tool Box, Two Pieline, One 4L Nitrogen Gas
Bottle.
The detail for NTK1000 as blow:
| TYPE | UNIT | NTK450 | NTK530 | NTK680 | NTK750 | NTK1000 |
| UNIT WEIGHT | KG | 95 | 145 | 275 | 373 | 768 |
| Requierd Oil Flow | L/min | 20-40 | 20-50 | 40-70 | 50-90 | 80-110 |
| Working Pressure | kg/cm | 90-120 | 90-120 | 110-140 | 120-150 | 150-170 |
| Impact Rate | b.p.m | 700-1200 | 600-1100 | 500-900 | 400-800 | 350-700 |
| Hose Diameter | in. | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Chisel Diameter | mm | φ45 | φ53 | φ68 | φ75 | φ100 |
| Chisel Length | mm | 500 | 580 | 700 | 750 | 1000 |
| Naise 85dB(A)-Distance | m | 3-6 | 4-8 | 5-10 | 6-12 | 7-14 |
| Applicable Excavator | m³TON | 0.03-0.1 | 0.06-0.2 | 0.15-0.3 | 0.2-0.35 | 0.4-0.6 |
| 0.8-1.5 | 2.5-4.5 | 4-7 | 6-7 | 11-16 |
NTK1000 Hydraulic Breaker/Hammer Apply to CAT 312B 312C 312D 313C
314, PC120 PC120-6, PC130-7 PC150 PW150, DH130 DX130 DH150 DX150
DH170 DX170, R130-7 R140 R160 R175, ZX110 ZX130W ZX150 ZX160, SK100
SK120 SK130 SK135 SK140, EC140B EC150 EW150 EW160
NTK provides the construction industry with products utilizing the
latest in design innovation and quality. Our Hydraulic Breakers
have been proven and refined by many years of aggressive service,
backed by our industry leading warranty. FEATURES Available for 0.8
– 55 Ton machines Shock Absorbing Design Noise Reduction Technology
2 Year Factory Warranty Meets ISO 9001 Standards outsea Parts and
Service.
FAQ
What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't
provide warranty time for original and used products.
What is your delivery time?
Generally, we will arrange the goods within 24 hours after your
payment; if not in stock, the delivery time will be communicated in
advance, usually 3-7 days
How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if
you really found something wrong, please provide pictures or video
for us and we will check. After it is confirmed, please return the
goods to us and we will offer the correct item.
How do I pay?
You can pay by T/T, PayPal(for small amount)
