NTK1400 SB81 Cylinder Hydraulic Breaker Piston

Product Categories

Guangzhou Qianjin Jiazhang Construction Machinery Parts Co., Tianhe District,

Contact Now

NTK1400 SB81 Cylinder Hydraulic Breaker Piston

Ask Lasest Price
Brand Name :	NTK
Model Number :	NTK1400 SB81
Certification :	BHF525120768D01T191122
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000 Piece/Pieces per Month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

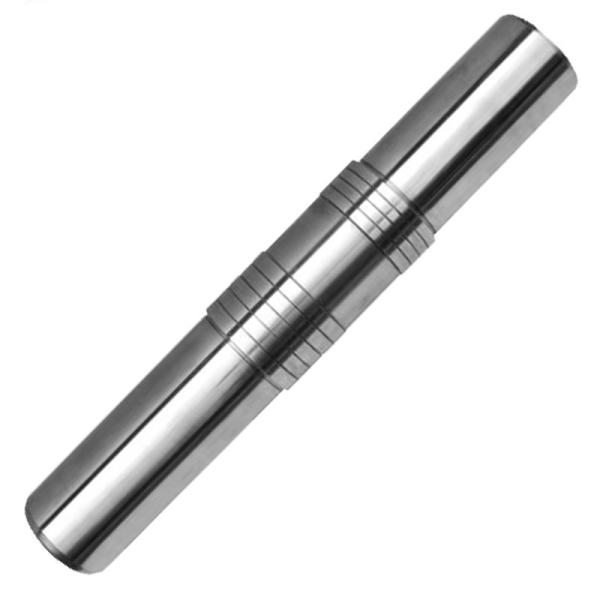

NTK1400 SB81 Cylinder Hydraulic Breaker Piston

NTK1400 SB81 Cylinder Hydraulic Breaker Piston

Hydraulic Breaker NTK1400 SB81 Piston Cylinder Piston

1. What factors affect a hydraulic hammer’s power?

The power of the hydraulic hammer is affected mainly by three factors: nitrogen pressure (back head pressure), hydraulic flow, and impact rate.

The amount of nitrogen is very specific; overcharging the nitrogen will make it stop hammering, while low nitrogen pressure results in weak hammering.

Hydraulic flow directly affects working pressure. Over-flow can damage the hammer very quickly, so be sure to work within the proper hydraulic range.

There is a frequency valve on the cylinder body responsible for the impact rate. Adjust it manually according to working conditions.

Basically, under certain working conditions, a slower impact rate leads to a more powerful impact, and higher frequency means a lighter blow.

2. How often does the seal kit need to be replaced?

It depends on working conditions, makes, and age. We recommend every three months.

3. Can a broken piston be repaired?

No, a broken hydraulic hammer piston can never

Crack reason of Chisel and Piston

Thrust&outer bushing worn

Chisel and piston crack reasons:

thrust& outer bushing wear greatly( s 10mm) partial hit for long time, beard uneven,please replace the thrust&outer bushing

Piston needs to be repaired or replaced

Chisel and piston crack reasons:

the piston hits the chisel for long time, causing piston surface worn and concave, so it can not coincide with the tail of chisel, Please repair the piston. Normal use

We can supply the following models of hydraulic breaker piston

Krupp	HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301,HM220V,HM230V,HM350V
Krupp	HM400/401,HM550,HM560CS,HM580,HM600/601,HM700,HM2100,HM2200/2500CS/V,HM780,HM780V
RAMMER	S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700,
RAMMER	S54/700,S55,S56/800,S82/1400
N.P.K	H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA
INDECO	MES350,HB5,HB8MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500
MONTABERT	BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250/270,BRP1100/V1600,BRV1600
MONTABERT	BRH501/570,BRH620, BRH625/M900/V900,BRH750,BRV32M125SX,M300,M700,SC16/NeusonNE16
STANLEY	MB125,MB250/350,MB550,MB656,MB800,MB1550,
STANLEY	MB1950/1975,MB30EX,MB40EX
FURUKAWA	HB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G
FURUKAWA	HB30G,HB40G,HB50G
TOKU/TOYO	TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101, TNB-08M,TNB-1M,TNB-3M,TNB-3E
OKADA	OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318,
SOOSAN	SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,SB100,SB121,SB130,SB151,SH200
SOOSAN	SH400,SH700,SH-18G,SH-20G,SH-30G,SH-35G,SH-40G
KWANGLIM	SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500,
ATLAS COPCO	MB500,MB700/800,MB1000,MB1200,MB1500,MB1600,MB1700,HB2000,HB2200,HB2500,HB3000,
ATLAS COPCO	HB4200,TEX75/80/100H/HS,TEX110H/HS, TEX180H/HS,TEX200H,TEX250H1,TEX400H/HS,TEX600
DAEMO	DMB03,DMB04,DMB06,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V,S1800-V
BLT	BLT20, BLT30, BLT40,BLT50,BLT60,BLT80-1,BLT80-2,BLT81,BLT100,BLT160,BLT190
MKB	MKB500,MKB800,MKB900,MKB1200,MKB1400,MKB1500,MKB1600,MKB1700,MKB2000,MKB2500
MIRACLE	MB15M,MB20M,MB35M,MB50M,MB80M,MB100M,MB130M,MB160M,MB300M,MB180F,MB250F,MB250F
MSB	SAGA20,SAGA30,SAGA40,SAGA50,SAGA80,SAGA120,SAGA180,SAGA200,SAGA300,SAGA350,MS200
MSB	MS250,MS300,MS400,MS450,MS500,MS550,MS600,MS700,MS750,MS800,MS900
HANWOO	RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313,
TEISAKU	TR40,TR100,TR210,TR300,TR60,TR200,TR220,TR400
DOUBLE BULL	DBB10,DBB20,DBB30,DBB50,DBB70,DBB90,DBB130,DBB160,DBB200,DBB220,DBB280,DBB300
COMET	CM70,CM100,CM135,CM140,CM155,CM165,CM175,CM185,CM200
HT-TECH	PK68,PK85,PK100,PK135,PD135,PK140,PJ140,PD145,PJ1500,PJ1501,PJ1550,PD1550,PD1750
HANMA	HM530,HM680,HM750,HM850,HM1000,HM1000V,HM1350,HM1350V,HM1400,HM1400A,HM1400V,HM1500
EVERDIGM	RHB301-V,RHB302-V,RHB303-V,RHB304,RHB305-E,RHB306,RHB309, RHB313-E ,RHB320,RHB321,RHB323,RHB324-E,RHB326,RHB330,RHB340,RHB350
GENERAL BREAKER	GBT50/BG2T,GBT70/GB3T,BGT90/GB4T,GBT130/GB5T,GBT170/BG6T,GBT20/BG8AT,GBT250/GB8T
GENERAL BREAKER	GBF225/GB8AF, GBF240/GB8F,GBF270/GB9F,GBF320/GB11T,GBE220/GB220E,GBE320/GB320E
DAINONG	D30,D50,D60,D70/90,D110,D130,D160,T180,K20
DAINONG	K25,K30,K50,K80,K120,K55S,K40S,
