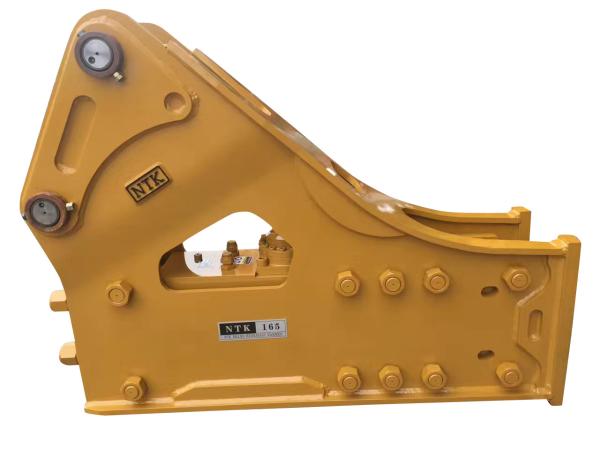

Multi Function 165mm Hydraulic Rock Breaker For 38-45 Ton Excavator
Hydraulic Breaker/Hammer For 38-45 Ton Excavator As Chisel 165mm
Hydraulic Breaker NTK1650 Excavator Attachment Parts Demolition
Hammer Chisel 165mm.
Feature
- Better design that combines efficiency, reliability and
serviceability.
- Excellent power-to-weight ratio
- Unique gas-charged piston maximizes hydraulic hammer efficience
- Simple, two-moving-parts design for reliability
- Quick-change tool system with single round retainer pin
- Standard on all medium and large NTK hydraulic hammers, our
shock-absorbing mounting bracket uses special heavy-duty rubber
mounts to absorb shock, recoil, and impulse vibration. The unique
one-piece design eliminates the need for mechanical springs and
overly heavy mounting brackets. The net result is minimization of
machine wear and improved operator comfort for greater reliability
and productivity.
- Simplified lubrication for greater reliability
- A grease port is provided for automatic and/or manual greasing of
the demolition tool. This prevents damage or premature wear caused
by a lack of grease.
- Full serviceability of the industry's easiest, lowest cost,
body-rebuild system
Hydraulic breakers are not meant to have an easy life. They
occasionally need to be rebuilt. When the hammer body is involved,
NTK's replaceable sleeve design can reduce your costs by a factor
of five to ten! - Potential applications include:
Rock breaking
Slag breaking
Reducing oversize material
Concrete breaking and recycling
Road construction
Sidewalk and curb construction
ALL the Breaker Set include:
Two Standard Chisel, One Tool Box, Two Pieline, One 8L Nitrogen Gas
Bottle.
The detail for NTK1650 as blow:
| TYPE | UNIT | NTK1350 | NTK1400 | NTK1550 | NTK1650 | NTK1750 |
| UNIT WEIGHT | KG | 1852 | 2081 | 2986 | 3248 | 4228 |
| LENGTH | mm | 2713 | 2824 | 3133 | 3577 | 3632 |
| Requierd Oil Flow | L/min | 120-180 | 120-180 | 180-240 | 200-260 | 210-290 |
| Working Pressure | kg/cm | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| Impact Rate | b.p.m | 350-500 | 350-500 | 300-450 | 280-370 | 150-300 |
| Hose Diameter | in. | 1 | 1 | 1¼ | 1¼ | 1¼ |
| Chisel Diameter | mm | φ135 | φ140 | φ155 | φ165 | φ175 |
| Chisel Length | mm | 1300 | 1300 | 1400 | 1500 | 1500 |
| Naise 85dB(A)-Distance | m | 16-22 | 16-22 | 26-35 | 37-42 | 38-45 |
| Applicable Excavator | m³TON | 0.7-0.8 | 0.7-0.9 | 1.1-1.4 | 1.3-1.5 | 1.4-2.0 |
| 18-21 | 18-26 | 28-35 | 38-45 | 40-55 |
NTK1650 Hydraulic Breaker/Hammer Apply to:
CAT 329D CAT336D CAT330B, PC400, DH340 DX340 R420 ZX350 ZX450,
SK450, EC460, HD2048, SY335C SY365C SY385C, LG936D, FR260 XG833
SWE330 ZE360SH350 SH450
NTK provides the construction industry with products utilizing the
latest in design innovation and quality. Our Hydraulic Breakers
have been proven and refined by many years of aggressive service,
backed by our industry leading warranty. FEATURES Available for 0.8
– 55 Ton machines Shock Absorbing Design Noise Reduction Technology
2 Year Factory Warranty Meets ISO 9001 Standards outsea Parts and
Service.
